Archer Product Security Development Assessment

The Archer Product Security Development Assessment offering helps organizations to track threat models, approvals for product initiatives, and mitigation plans to address findings as a result of the threat model risk assessment.

Archer Exchange: With the Archer Exchange, the Archer team has created a broad selection of supplemental, value-added offerings to help you get your unique risk management program on the right path, right from the start. You can leverage the Archer Exchange offerings to expand the use of Archer solutions into new business processes and address specific industry, geographic, regulatory, or technical requirements.

On this page

Release notes

Release date	Platform release	Notes
May 2023	6.12	Recertification and minor updates: Countermeasures: Updated Related Initiatives cross reference calculation as it was displaying all project initiatives with no initiative risk assessment, if countermeasure is not assigned to any initiative risk assessment. Data feed Generate Initiative Risk Assessments: When multiple records are in queue for assessment generation, records for all potential threats from the source report were being created for initiatives irrespective of the threats selected within them. Update made to the source transform to fix the issue.
February 2020	6.12

Release date

Platform release

Notes

May 2023

6.12

Recertification and minor updates:

Countermeasures: Updated Related Initiatives cross reference calculation as it was displaying all project initiatives with no initiative risk assessment, if countermeasure is not assigned to any initiative risk assessment.
Data feed Generate Initiative Risk Assessments: When multiple records are in queue for assessment generation, records for all potential threats from the source report were being created for initiatives irrespective of the threats selected within them. Update made to the source transform to fix the issue.

February 2020

6.12

Overview

Companies see value in transitioning to a DevOps process model, which allows faster turnaround and less waste in the development process; however, this new model opens companies up to new security risks that need to be monitored as the development teams iterate. Third party libraries significantly increase the vulnerability of software and need to continually be monitored for risk. To reduce risk and vulnerabilities, security should be an ongoing integrated part of the DevOps process by performing continual software security tests. Product Security teams should be able to view and understand the risks that new products impart on the company and provide insight into the paths to approve or mitigate risk before deployment. With faster cycle times and a desire to quickly deploy new products, a consistent and repeatable process is essential to ensure all risks are understood at all levels.

Inefficient approval processes and oversight can slow down development
Product management needs to understand all the product features that are being worked on
Third party libraries massively increase the vulnerability of a software and must be continually monitored for risk (future tracking of libraries)
Development teams need to perform continual security tests on software to reduce vulnerabilities
A consistent and repeatable process is necessary to manage access and edits to product elements

Key features and benefits

The Archer Product Security Development Assessment offering enables organizations to do the following.

Document product initiatives for the organization.
Manage and track threat model information.
Identify risks and mitigation strategies associated with threat modeling.

Track results and approvals for Security Testing and Third-Party Library.

The benefits of using Archer Product Security Development Assessment include the following.

Consistent and repeatable process for managing initiatives and risks
Faster cycle times by addressing security threats earlier in the development cycle
Understand and minimize impacts to the organization through mitigating risks
Ensure accountability for security during the development cycle

User guide

Create a new initiative

Users: Initiative Leader

Go to the Product Initiatives record.
1. From the menu bar, click Product Security Development Assessment.
2. Under Solutions, click Product Security Development Assessment.
3. Under Applications, click Product Initiatives.
4. click New.
Enter Initiative Name in the General Information section.
Select the Initiative Type and Risk Tolerance values by clicking the down arrow next to the field and making your selection.
Select the Estimated Start Date and Estimated End Date by clicking the calendar icon next to the field.
Enter Estimated Cost in the General Information section.
Enter the Description for the Initiative.
Select user from the list in the Security Manager, Product Manager and Risk Officer field from the Roles and Responsibilities section.
(Optional) Select any Watchers you would like to add to the Initiative.
Once the record is complete, click Save in the Record Toolbar to save in record. After saving the Initiative, the record will be enrolled into workflow.

Scope must be defined by selecting the associated Business Units, Business Processes, Applications, Devices or Product and Services by selecting respective record.
Add or Lookup a Third Party Library record by clicking the | Add New | or | Lookup | button in the Third Party Library section.
(Optional) Add Comments to the request by clicking the | Add New | button in the Comments section.
(Optional) Add attachments/documentation to the record by clicking the | Add New | button in the Supporting Documentation field.
Click Save in the Record Toolbar to save in Product Initiative record.
Click on Document Threat Model button at the top left of the screen.

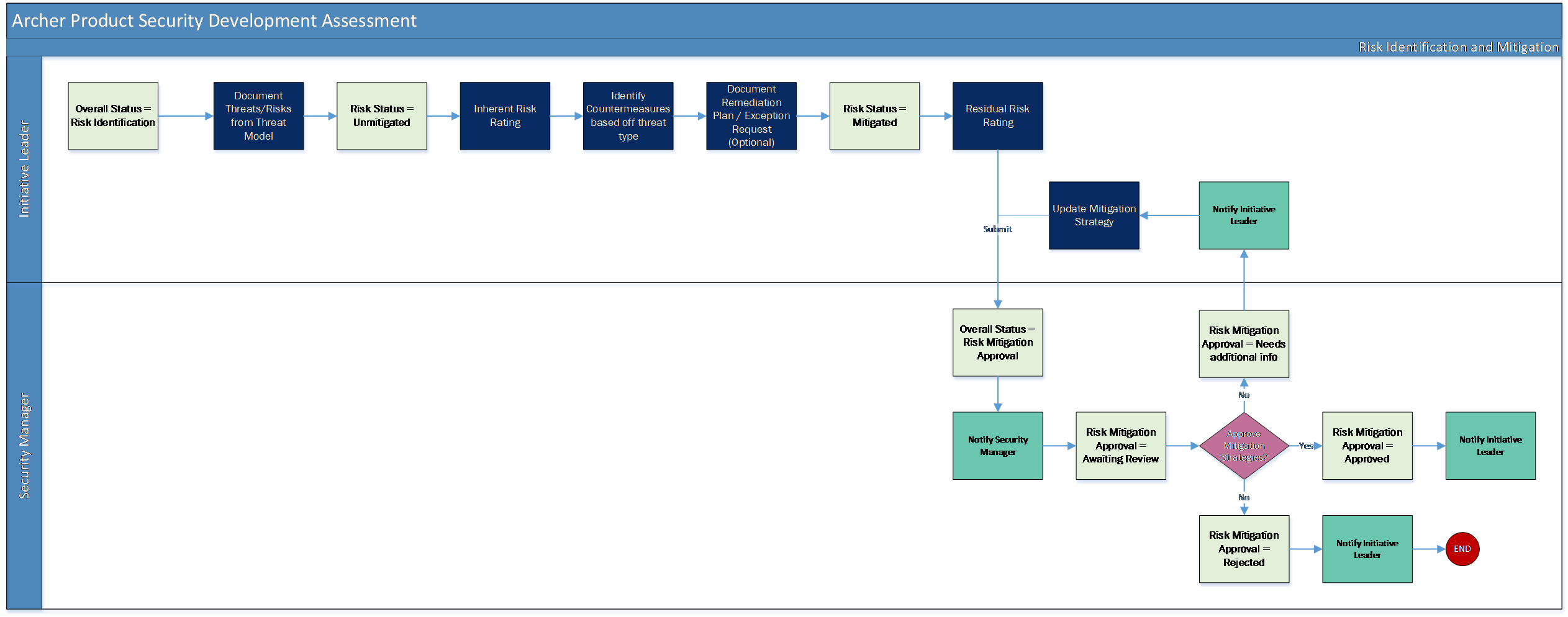

Identify & mitigate risk

Users: Initiative Leader

Select the Initiative that you want to perform Risk Identification and Mitigation by clicking the Initiative Name under the Tasks section on your Task landing screen.
Click the Edit button in the top of the record.
Select Potential Threat values by clicking from the Threat Information section in Risk Identification and Mitigation tab.
Click on Generate Assessment button at the top left of the screen. Wait for Initiative Risk Assessment records to be generated. After the generation of the Assessment, follow the steps below:

In Edit mode, navigate to Initiative Risk Assessment section in Risk Identification and Mitigation tab and Enable Inline edit.
Inline Edit: Select Inherent Impact and Inherent Likelihood field values by clicking the down arrow next to the field and making your selection in Initiative Risk Assessment section.
Inline Edit: Select Countermeasure from the Lookup by clicking in the Initiative Risk Assessment section.
Inline Edit: Select Residual Impact and Residual Likelihood field values by clicking the down arrow next to the field and making your selection in Initiative Risk Assessment section.
Click on Save Changes button at the top of the page or Save button at the end of the row in Initiative Risk Assessment section.
Click Save in the Record Toolbar to save in Product Initiative record. The Inherent Risk and Residual Risk values will be populated in Assessment Summary section.
Make sure all Assessment Status is Complete. Click on Submit for Review button in the top left of the screen.

Review risk mitigation

Users: Security Manager

Select the Product Initiative you want to review by clicking the Initiative Name under the Tasks section on your Task landing screen.
Click the Edit button in the top of the record.
To Approve the request
1. Inline Edit: Select ‘Approved’ from Risk Mitigation Approval field value by clicking the down arrow next to the field and making your selection in Initiative Risk Assessment section.
2. Click on Save Changes button at the top of the page or Save button at the end of the row in Initiative Risk Assessment Section.
3. Make sure the Risk Mitigation Approval field contains Approved in all the Initiative Risk Assessment records.
4. Click on Approve button in the top left of the screen.
To request additional information from the Initiative Leader:
1. Inline Edit: Select ‘Needs Additional Information’ from Risk Mitigation Approval field value by clicking the down arrow next to the field and making your selection in Initiative Risk Assessment Section.
2. Click on Save Changes button at the top of the page or Save button at the end of the row in Initiative Risk Assessment Section.
3. Document the additional information requested in the Risk Mitigation Review Comments field.
4. Click on Request Additional Information button at the top left of the screen.
To Reject the Initiative:
1. Inline Edit: Select ‘Rejected’ from Risk Mitigation Approval field value by clicking the down arrow next to the field and making your selection in Initiative Risk Assessment Section.
2. Click on Save Changes button at the top of the page or Save button at the end of the row in Initiative Risk Assessment Section.
3. Document the reason for rejecting the request in the Risk Mitigation Review Comments field.
4. Click on Reject button at the top left of the screen.

Develop an initiative

Users: Initiative Leader

Go to the Product Initiatives record.
1. From the menu bar, click Product Security Development Assessment.
2. Under Solutions, click Product Security Development Assessment.
3. Under Applications, click Product Initiatives.
Select the initiative record in ‘Development’ Status.
Click the Edit button in the top of the record.
Update countermeasures selected in the Initiative Risk Assessment section for identified risks if there were changes.
Upload threat model if there were changes by clicking the | Add New | button in the Threat Modeling Documents field.
Indicate justification for any threats with Unmitigated status in the Comments field by clicking the | Add New | button in the Comments section.
Reevaluate residual risk if required.
Once the record is Complete. Click on Development Complete button in the top left of the screen.

Review an initiative (Security Manager)

Users: Security Manager

Select the Product Initiative you want to review by clicking the Initiative Name under the Tasks section on your Task landing screen.

OR

Go to the Product Initiatives record.
1. From the menu bar, click Product Security Development Assessment.
2. Under Solutions, click Product Security Development Assessment.
3. Under Applications, click Product Initiatives.
Select the initiative record in ‘Release Approval’ Status.

Click the Edit button in the top of the record.
To Approve the request
1. Click on Approve button in the top left of the screen. The user has a secure way to approve the record with electronic signatures.
2. User enters their Archer password for completing the Approve action.
3. Electronic signature is tracked through entries in a History Log field and by having a system generated snapshot automatically attached to an attachment field.
To request additional information from the Initiative Leader:
1. Document the additional information requested in the Comments field.
2. Click on Request Additional Information button at the top left of the screen.
To Reject the Initiative:
1. Document the reason for rejecting the request in the Comments field.
2. Click on Reject button at the top left of the screen.

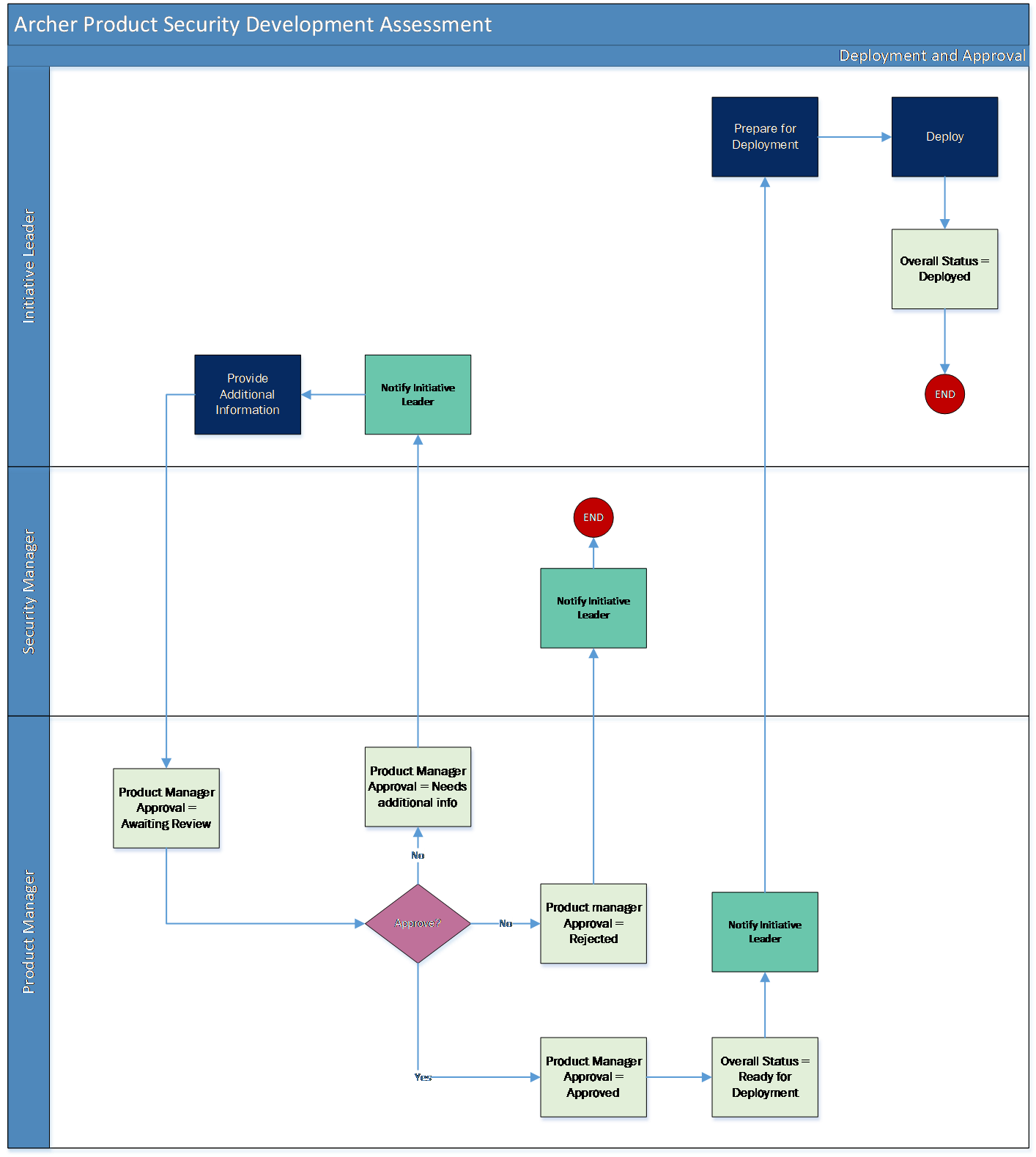

Review an initiative (Product Manager)

Users: Product Manager

Select the Product Initiative you want to review by clicking the Initiative Name under the Tasks section on your Task landing screen.

OR

Go to the Product Initiatives record.
1. From the menu bar, click Product Security Development Assessment.
2. Under Solutions, click Product Security Development Assessment.
3. Under Applications, click Product Initiatives.
Select the initiative record in ‘Release to Ops’ Status.

Click the Edit button in the top of the record.
To Approve the request
1. Click on Approve button in the top left of the screen. The user has a secure way to approve the record with electronic signatures.
2. User enters their Archer password for completing the Approve action.
3. Electronic signature is tracked through entries in a History Log field and by having a system generated snapshot automatically attached to an attachment field.
To request additional information from the Initiative Leader:
1. Document the additional information requested in the Comments field.
2. Click on Request Additional Information button at the top left of the screen.
To Reject the Initiative:
1. Document the reason for rejecting the request in the Comments field.
2. Click on Reject button at the top left of the screen.

Create a countermeasure plan

Users: Initiative Leader

Go to the Countermeasures record.
1. From the menu bar, click Product Security Development Assessment.
2. Under Solutions, click Product Security Development Assessment.
3. Under Applications, click Countermeasures.
4. click New.
Enter Countermeasure Name in the General Information section.
Select the Threat Type by clicking next to the field and making your selection.
Select user from the list in the Countermeasure Approver field by clicking from the General Information section.
Enter Countermeasure Cost and Countermeasure Description in the General Information section.
Scope must be defined by selecting the related Applications, Devices or Product and Services by clicking and selecting respective record.
Select the Approach type field value by clicking the down arrow next to the field and making your selection in the Countermeasure Plan section.
Select the Expiration Date by clicking the calendar icon next to the field in the Countermeasure Plan section.
Enter Countermeasure Implementation in the Countermeasure Plan section.
Document the Code and Scan Parameters in the Countermeasure Plan section.
Add Testing Plan details to the Countermeasure by clicking the | Add New | button in the Testing Plan section.
(Optional)Add Comments to the Countermeasure by clicking the | Add New | button in the Comments section.
(Optional) Add attachments/documentation to the record by clicking the | Add New | button in the Related Documents field.
Once the Countermeasure is complete, select ‘Yes’ in the ‘Ready for Review?’ field value to submit the countermeasure for review.
Click Save in the Record Toolbar to save in Countermeasure record.

Review a countermeasure plan

Users: Security Manager

Go to the Countermeasures record.
1. From the menu bar, click Product Security Development Assessment.
2. Under Solutions, click Product Security Development Assessment.
3. Under Applications, click Countermeasures.
Select the Countermeasure record in ‘Submitted’ Status.
Click the Edit button in the top of the record.
To Approve the request
1. Select ‘Approve’ from Countermeasure Review field value by clicking the down arrow next to the field and making your selection.
2. Click Save in the Record Toolbar to save in Countermeasure record.
To request additional information from the Initiative Leader:
1. Select ‘Needs Additional Information’ from Countermeasure Review field value by clicking the down arrow next to the field and making your selection.
2. Document the additional information requested in the Comments field.
3. Click Save in the Record Toolbar to save in Countermeasure record.
To Reject the Countermeasure:
1. Select ‘Reject’ from Countermeasure Review field value by clicking the down arrow next to the field and making your selection.
2. Document the reason for rejecting the request in the Comments field.
3. Click Save in the Record Toolbar to save in Countermeasure record.
To Decommission the Countermeasure:
1. Select ‘Decommission’ from Countermeasure Review field value by clicking the down arrow next to the field and making your selection.
2. Document the reason for Decommissioning the request in the Comments field.
3. Click Save in the Record Toolbar to save in Countermeasure record.

Administrator guide

Prerequisites (ODA & system requirements)

Components	Prerequisites
Archer solution areas	IT & Security Risk Management
Archer use cases	Issues Management
Archer applications	Requirements for the installation and operation of ArcherProduct Security Development Assessment includes the following applications: Exception Requests– Archer Issues Management Remediation Plans – Archer Issues Management
Uses custom objects	No
Requires Archer on-demand application licenses	Four (4) Archer On-Demand Application licenses are required
Archer platform requirements	Archer platform release 6.12 and later
Supported Archer environments	On-Premises Archer SaaS

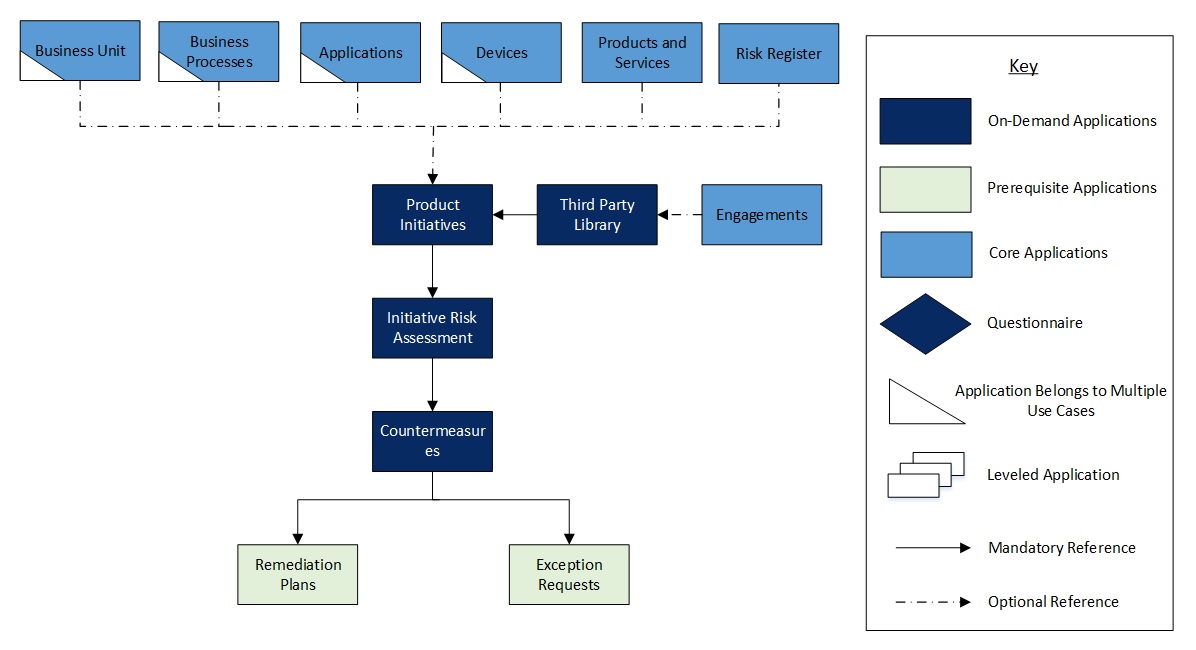

Compatible use cases & applications - related applications

Application	Use case	Primary purpose of the relationship
Business Unit	Business Asset Catalog	To relate Business Units that are impacted by the Product Initiatives
Business Processes	Business Asset Catalog	To relate Business Processes that are impacted by the Product Initiatives
Applications	IT Asset Catalog	To relate Applications that are impacted by the Product Initiatives
Devices	IT Asset Catalog	To relate Devices that are impacted by the Product Initiatives
Products and Services	Business Asset Catalog	To relate Products and Services that are impacted by the Product Initiatives
Risk Register	Risk Catalog; Top-Down Assessment(Operational Risk Management) or IT Risk Management; Information Security Management System(IT Security Risk Management) or Operational Scenario Analysis (Operational Scenario Analysis)	To identify, track and provide visibility for Initiatives that pose a risk to the organization.
Control Procedures	Controls Assurance Program Management; Data Governance (Regulatory and Corporate Compliance) or Top-Down Assessment(Enterprise & Operational Risk Management) or IT Controls Assurance; IT Risk Management; Information Security Management System; PCI Management(IT Security Risk Management)	You can tie your procedures to the control procedures that they are meant to evaluate. When you scope an entity, the system can also pull in related control procedures.

Components

Architecture diagram

The following diagram shows the relationship between the applications in Archer Product Security Development Assessment.

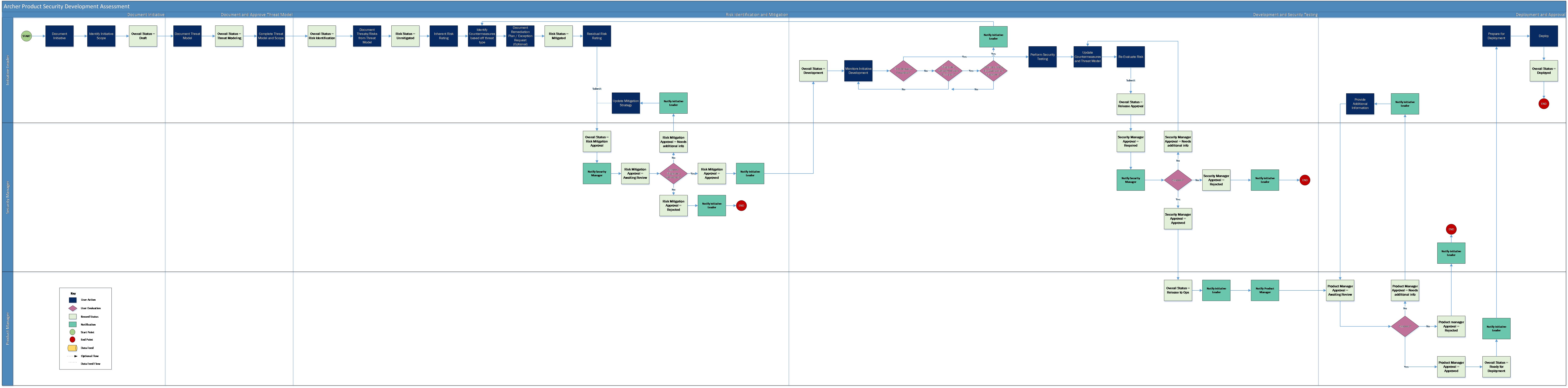

Process diagram

The flow is as follows: First a Product initiative is documented and its scope and threat model is documented. Any associated risk related to the product are identified and mitigated. Then the product development and testing is performed. Once all approvals are obtained the all security testing is cleared the product is deployed. Each stage is discussed below.

Scoping and Threat Model

Risk Identification and Mitigation

Development and Security Testing

Deployment

Applications

Application	Description
Product Initiatives	The Product Initiatives application documents all the information regarding the initiative. It contains the scope of the initiative, threat models, and risk assessments.
Third Party Library	The Third Party Library application documents the third party libraries used in the initiatives and associates them to the Third Party Engagements.
Initiative Risk Assessment	The Initiative Risk Assessment application captures the results from the risk assessment, findings, countermeasures, and mitigation plans or exception requests.
Countermeasures	The Countermeasures application captures the controls to reduce the risk against threats identified during the risk assessment.

Personas & access roles

The following table describes the functions that make up the application’s organization roles. Depending on the organization of your company, these functions and responsibilities may vary.

Function	Description
Initiative Leader	This person is responsible for the development of the initiative and for implementing the indicated countermeasures. This person may be a Product Owner or someone on the Product Security Team.
Security Manager	Responsible for the monitoring of third party application usage and initiative risk. This person in in charge of validating risk mitigation and risk assessment changes submitted by Initiative Leaders. This person might be a manager in the Product Security Team.
Product Manager	Responsible for reviewing and approving initiative features. They are responsible for aligning features with overall product mission and business rational. This person may be a Product Owner or someone in the Product Management department.
Risk Officer	Monitor and review initiative risk above set risk tolerances. They may also be the one who sets appropriate risk levels for different teams. This person might be someone in the Risk department or someone with authority in the Engineering department.

Applications	Initiative Leader	Security Manager	Product Manager	Risk Officer
Product Initiatives	CRU*	CRU*	RU	R
Third Party Library	CRU*	CRU*	RU	R
Initiative Risk Assessment	CRU	CRU	RU	R
Countermeasures	CRU	CRU	RU	R
Remediation Plans	CRU	CRU	R	R
Exceptions Requests	CRU	CRU	R	R
Business Units	R	R	R	R
Business Processes	R	R	R	R
Applications	R	R	R	R
Devices	R	R	R	R
Products and Services	R	R	R	R
Risk Register	R	R	R	R

C = Create, R = Read, U = Update, D = Delete, * Indicates Record Permissions

Note: Members of the Initiative Leader, Security Manager, Product Manager, and Risk Officer should also be assigned to the EM: Read Only groups under Enterprise Management and Third Party Risk Management to allow selection of Business Unit, Business Processes, Applications, Devices, Products and Services.

Install Archer Product Security Development Assessment

Prepare for the installation.
1. Download the installation package from myArcher.
2. Read and understand the "Packaging Data" section of Archer Help.
Install the package.
Set up the data feeds.
Test the installation. Test the application according to your company standards and procedures, to ensure that the use case works with your existing processes.

Install the package

Installing a package requires that you import the package file, map the objects in the package to objects in the target instance, and then install the package.

Task 3: Map objects in the package

Important: This step is required only if FAR Regulatory Correspondence is already present in your system, and you are installing this package.

From the menu bar, click > Application Builder > Install Packages.
In the Available Packages section, locate the package you want to map.
In the Actions column, click for that package.
The analyzer examines the information in the package. The analyzer automatically matches the system IDs of the objects in the package with the objects in the target instance and identifies objects from the package that are successfully mapped to objects in the target instance, objects that are new or exist but are not mapped, and objects that do not exist (the object is in the target but not in the source).
When the analyzer is complete, the Advanced Package Mapping page lists the objects in the package file and corresponding objects in the target instance.

On the Advanced Mapping page, click to open each category and review the icons next to each object to determine which objects you must map manually.

The following table describes the icons.
Icon	Name	Description
	Awaiting Mapping Review	Indicates that the system could not automatically match the object or one of its children to a corresponding object in the target instance. Objects marked with this icon must be mapped manually. New objects should not be mapped. Select Do Not Map from the drop-down menu to clear this icon for an individual object, or click Do Not Map to clear the icon for all unmapped objects.
	Mapping Completed	Indicates that the object and all children are mapped to objects in the target instance, or that they have been marked as Do Not Map. Nothing more needs to be done with these objects in Advanced Package Mapping.

Note: You can run the mapping process without mapping all objects. The Awaiting mapping review icon is for informational purposes only.

For objects awaiting mapping review, do one of the following:
- To map each object individually, use the drop-down menu in the Target column to select the object in the target instance to which you want to map the source object. To leave an object unmapped, select Do Not Map in the Target column.
- To automatically map all objects in a category that have different system IDs but the same object name as an object in the target instance, click Auto Map. Select whether to ignore case and spaces when matching object names. Click OK.
- To mark all unmapped objects as Do Not Map, click Do Not Map.
(Optional) Click to enable filter fields that you can use to find specific objects in each mapping category. To undo your mapping selections, click Undo, then select whether to undo all mappings in the category or only the mappings on a single page. If you choose to undo all mappings, you will be returned to the categories list.
(Optional) To save your mapping selections and return to the categories list without committing changes to the target instance, click .
After you review and map all objects, click Execute.
Select I understand the implications of performing this operation. Click OK.
When the mapping is complete, the Import and Install Packages page displays.
Important: Advanced Package Mapping modifies the system IDs in the target instance. You must update any Data Feeds and Web Service APIs that use these objects with the new system IDs.

Task 4: Install the package

All objects from the source instance are installed in the target instance unless the object cannot be found or is flagged to not be installed in the target instance. A list of conditions that may cause objects not to be installed is provided in the Log Messages section. A log entry is displayed in the Package Installation Log section.

From the menu bar, click > Application Builder > Install Packages.
In the Available Packages section, locate the package file that you want to install, and click the file name or at end of the row to open the Options menu.
In the Selected Components section, click the Lookup button to open the Package Selector window.
- To select all components, select the top-level checkbox.
- To install only specific global reports in an already installed application, select the checkbox associated with each report that you want to install.
Note: Items in the package that do not match an existing item in the target instance are selected by default.

Under the Translation Option drop-down menu, select an option for each selected component. To use the same Translation Option for all selected components, select a method from the top-level drop-down list.
The Translation Option is enabled only when a language is selected.

The following table describes the options.
Option	Description
Full Install	Installs the component and its translations from the selected languages.
Translations Only	Only installs the translations from the selected languages.

Under the Install Method drop-down menu, select an option for each selected component. To use the same Install Method for all selected components, select a method from the top-level drop-down list.

The following table describes the options.
Option	Description
Create New Only	Only creates new fields and other elements in the applications, questionnaires, workspaces, data feeds, and dashboards specified in the package file. This option does not modify any existing elements on your instance of Archer. This is useful when you want to add functionality to an existing application, questionnaire, workspace, dashboard, data feed, or access role, but you do not want to risk making any unwanted changes to the existing elements of workspaces, data feeds, or dashboards. iViews that are not currently on the dashboards that are selected for the package install are created. Note: The Create New Only option does not apply to access roles or languages.
Create New and Update	Updates all elements in the applications, questionnaires, workspaces, data feeds, and dashboards as specified in the package file. This includes adding new elements and updating existing elements. Existing iViews on the dashboards that are selected for the package install are updated, and iViews that are not currently on the dashboards that are selected for the package install are created. Note: The Create New and Update option does not apply to access roles or languages.

Under the Install Option drop-down menu, select an option for each selected component. To use the same Install Option for all selected components, select an option from the top-level drop-down list.

The following table describes the options.
Option	Description
Do not Override Layout	Installs the component, but does not change the existing layout. This is useful if you have a lot of custom fields and formatting in your layout that you do not want to risk losing. You may have to modify the layout after installing the package to use the changes made by the package. Note: The Do not Override Layout option does not apply to access roles or languages.
Override Layout	Updates the layout as specified in the package file, overwriting the existing layout. Note: The Override Layout option does not apply to access roles or languages.

Click Continue to advance to the next object category in the Package Selector, and repeat steps 4 to 6. After reviewing all object categories, click OK.
To deactivate target fields and data-driven events that are not in the package, in the Post-Install Actions section, select the Deactivate target fields and data-driven events that are not in the package checkbox. To rename the deactivated target fields and data-driven events with a user-defined prefix, select Apply a prefix to all deactivated objects, and enter a prefix. This can help you identify any fields or data-driven events that you may want to review for cleanup post-install.
Click Install.
Click OK.

Set up data feeds

Configure the data feed

Go to the Manage Data Feeds page.
1. From the menu bar, click .
2. Under Integration, click Data Feeds.
In the Manage Data Feeds section, click Generate Initiative Risk Assessmentsdata feed.
From the General tab in the General Information section, in the Status field, select Active.
Click the Transport tab. Complete the fields in the Transport Configuration section as follows: In the URL field, type: YourServerName/VirtualDirectoryName/ws/search.asmx
In the User Name and Password fields, type the username and password of a Platform user that has API access and access to all the records on the Platform instance (from which the data feed is coming).
In the Instance field, type the name of the Platform instance from which the data feed is coming (this is the instance name as you enter it on the Login window).
Click Save.

Schedule a data feed

Important: A data feed must be active and valid to successfully run.

As you schedule your data feed, the Data Feed Manager validates the information. If any information is invalid, an error message is displayed. You can save the data feed and correct the errors later; but the data feed does not process until you make corrections.

Go to the Schedule tab of the data feed that you want to modify.
1. From the menu bar, click .
2. Under Integration, click Data Feeds.
3. Select the data feed.
4. Click the Schedule tab.
Go to the Recurrences section and complete frequency, start and stop times, and time zone.
(Optional) To override the data feed schedule and immediately run your data feed, in the Run Data Feed Now section, click Start.
Click Save.

Certification environment

Date tested: May 2023

Product Name	Release Information
Archer	6.12
