NIST National Vulnerability Database (NVD) - 2025.04

The NIST National Vulnerability Database (NVD) is the U.S. government repository of standards-based vulnerability management data. This data enables automation of vulnerability management, security measurement, and compliance. NVD includes databases of security checklists, security related software flaws, misconfigurations, product names, and impact metrics.

The integration of NVD with the Archer IT & Security Vulnerabilities Program use case enables customers to connect the NVD catalog of vulnerabilities using the CVE standard to the asset information within Archer.

With the Archer Exchange, the Archer team and our trusted partners have created a broad selection of supplemental, value-added offerings to help you get your unique risk management program on the right path, right from the start. You can leverage the Archer Exchange offerings to expand the use of Archer solutions into new business processes and address specific industry, geographic, regulatory, or technical requirements. The Archer Exchange features a fast and agile development cycle, enabling quick delivery of new and updated offerings for trending issues and connections to innovative technologies.



Release notes

Document Version	Published Date	Notes
2025.04	July 2025	Updated JS code. Updated parameter support. Suggested approaches:  Base load:   type= INDEX resultsPerPage = 1000 (client discretion, less than 2000) requestsPerMin = 10 (client discretion, less than 60) Incremental loads: type= DATE lastModifiedStartDate = <LastRunTime> lastRunTimeOffset = -1 (client discretion) resultsPerPage = 1000 (client discretion, less than 2000) requestsPerMin = 20 (client discretion, less than 60)
6.14	June 2024	Re-Signed JavaScript file.
6.14	December 2023	NIST has elected to retire its legacy data feeds and the 1.0 APIs and guided existing users to transition to the 2.0 APIs to continue to get NVD data without interruption. The data feed configuration has been changed to JavaScript Transporter Data Feed that fetches the NVD vulnerabilities data through NVD API 2.0.
1.3	December 2023	Replacement of HTTP Transporter Data feed due to deprecation of legacy NVD API, with NVD JST Data feed
1.2	August 2023	Update of the NVD Data Request URI
1.1	July 2019	Conversion from XML to JSON source due to XML source deprecation
1.0	December 2023	Initial Version

Overview

Benefits

The NIST NVD integration with Archer enables organizations to:

• Catalog vulnerabilities using the Common Vulnerability Enumeration (CVE) standard defined by the US Government.

• Build a base Vulnerability Library recognized as security industry standard.

Prerequisites (ODA and system requirements)

Components	Prerequisites
Archer Solution Area	IT Security & Risk Management
Archer Use Case	Archer IT Security Vulnerabilities Program
Archer Applications	Vulnerability Library, Vulnerability Reference Lists
Uses Custom Objects	No
Requires Archer On-Demand Application License	No
Supported Archer Environments	Archer On-Premises (see documentation for the NIST NVD Integration for Archer On-Premises) Archer SaaS
Partner/Vendor Requirements	Valid NIST license is required

Compatible use cases and applications - related applications

Application	Use Case	Primary Purposes of the Relationship
Vulnerability Library	IT Securities Vulnerabilities Program (IT Security & Risk Management)	The Vulnerability Library application represents a catalog of vulnerability data collected from the National Vulnerabilities Database (NVD)/National Institute of Standards and Technology (NIST). The Vulnerability Library is updated each week or month by data feeds depending on the source.
Vulnerability Reference Lists	IT Securities Vulnerabilities Program (IT Security & Risk Management)	The Vulnerability Reference Lists application provides a repository of public vulnerability references collected from the National Vulnerabilities Database (NVD)/National Institute of Standards and Technology (NIST). The application provides a list of entries, each containing a vulnerability identification number, a type, and a public reference for known Cyber Security vulnerabilities. The URL found in the application contains a list of public references detailing information about the vulnerability, such as a description, consequences of the vulnerability, and potential mitigation strategies.

Additional resources

The following additional resources are available for this offering:

• Third-party website: https://nvd.nist.gov/

Integration components

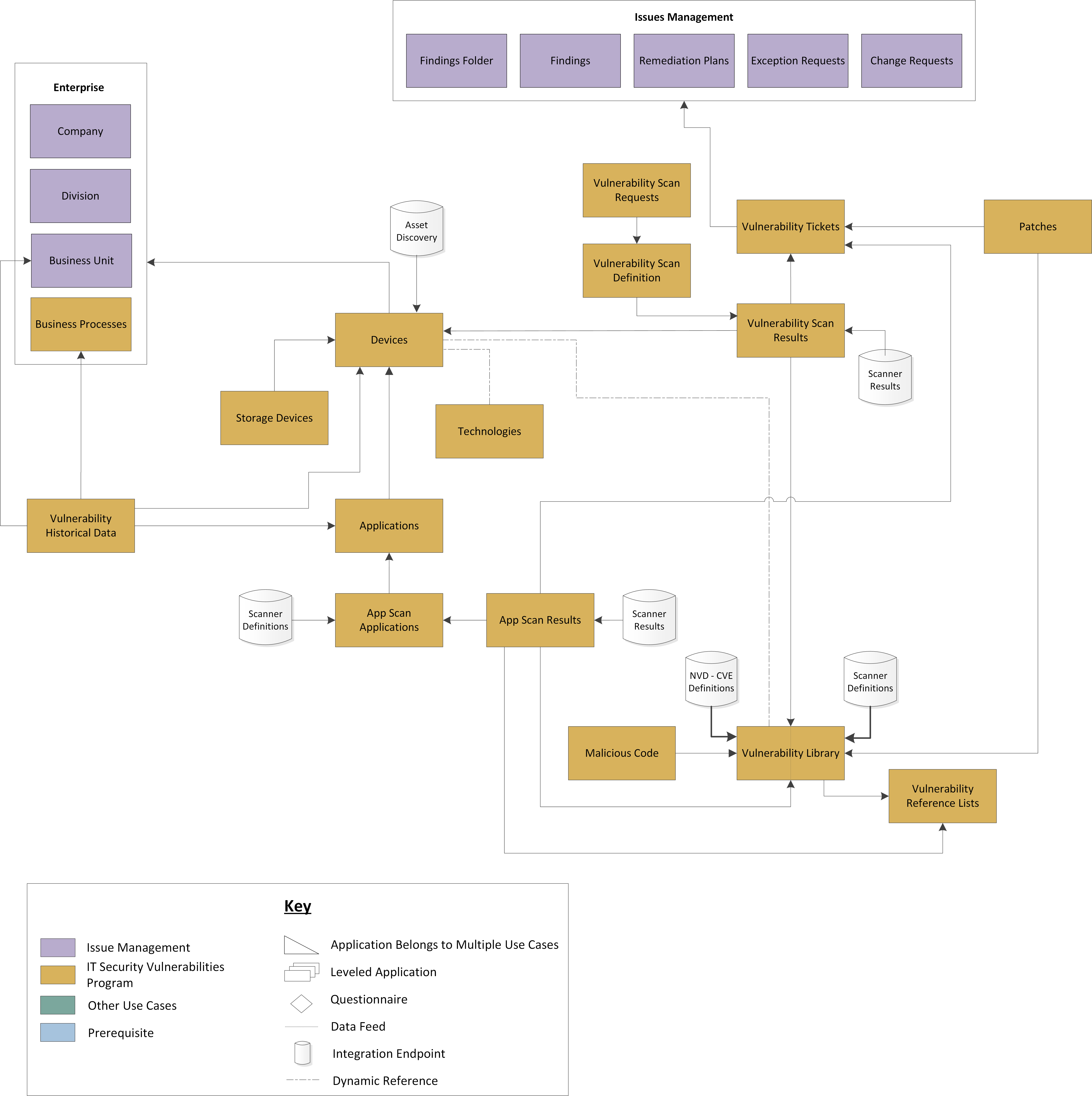

Architecture diagram

The following diagram provides an overview of the integration between NVD and Archer.

Applications

Application	Description
Vulnerability Library	The Vulnerability Library application represents a catalog of vulnerability data collected from the National Vulnerabilities Database (NVD)/National Institute of Standards and Technology (NIST), Qualys Guard, and Tenable Security Center. The Vulnerability Library is updated each week or month by data feeds depending on the source. The library includes data points such as:  Vulnerability publication date Title Consequence Recommended solution Severity CVSS scoring Records can be linked to affected devices, vulnerability scan results, and malicious code found to exploit the vulnerability. The Vulnerability Library also provides a method for generating exception requests, identifying mitigating strategies, and denoting affected ports. By tying vulnerabilities to assets, you can properly analyze, prioritize, and respond proactively to address the threat for vulnerable assets. The Vulnerability Library provides the ability to: Automatically import data from NVD/NIST, Qualys Guard, and Tenable Security Center. Notify appropriate personnel automatically when new vulnerabilities are identified. Research potential threats and produce real-time reports that aid in the creation of action plans.
Vulnerability Reference Lists	The Vulnerability Reference Lists application provides a repository of public vulnerability references collected from the National Vulnerabilities Database (NVD)/National Institute of Standards and Technology (NIST), Qualys Guard, and Tenable Security Center, based on what vendor you are using to scan. The Vulnerability Reference List is updated based on a user-defined schedule to account for emerging threats. The application provides a list of entries, each containing a vulnerability identification number, a type, and a public reference for known Cyber Security vulnerabilities. The URL found in the application contains a list of public references detailing information about the vulnerability, such as a description, consequences of the vulnerability, and potential mitigation strategies.

Personas and access roles

The following table describes the functions that make up the application’s organization roles. Depending on the organization of your company, these functions and responsibilities may vary.

Function	Description
ITSVP: Analysts	This role provides the appropriate access levels to Analysts within the ITSVP use case to perform analysis and classify vulnerabilities accordingly.
ITSVP: Operations	This role provides the appropriate access levels to Operators within the ITSVP use case.
ITSVP: Executive Management	This role establishes the rights for Executive Management within the ITSVP use case. Users with this role are provided with read access to ITSVP applications.
ITSVP: Business Management	This role provides access levels to the appropriate line of business within the ITSVP use case.
ITSVP: Admin	This role serves as the administrator for the ITSVP use case, providing create, read, update, and delete access rights.

Setting up the NIST National Vulnerability Database (NVD) data feed

This section provides instructions for configuring the NIST CVE data feed. This document is not intended to suggest optimum installations or configurations.

It is assumed that the reader has both working knowledge of all products involved, and the ability to perform the tasks outlined in this section. Administrators should have access to the product documentation for all products to install the required components.

Important: The integration described in this guide is being provided as a reference implementation for evaluation and testing purposes. It may or may not meet the needs and use cases for your organization. If additional customizations or enhancements are needed, it is recommended that customers contact Archer Professional Services for assistance.

Prerequisites (System Requirements)

The Archer IT Security Vulnerability Program use case must be installed and working prior to the integration. The Vulnerability Library application serves as the target application for the NVD data feed. Perform the necessary tests to confirm that this is true prior to proceeding.

Note: Obtain the installation package from Archer Exchange, ensuring it aligns with your Archer platform release and deployment environment.

Configure JavaScript Transporter Settings

Before you upload a JavaScript file, you must configure JavaScript Transporter settings in the Archer Control Panel.

Update JavaScript Transporter settings

1. Open the Archer Control Panel.

2. Go to Instance Management > All Instances.

3. Select an instance.

4. On the General tab, go to the JavaScript Transporter section.

5. In the Max Memory Limit field, set the value to 2048 MB (2 GB).

6. In the Script Timeout field, set the value to 120 minutes (2 hours).

7. Require Signature is active by default on install. Signed Certificate Thumbprints are required for all Hosted clients.

   1. In the Signing Certificate Thumbprints section, add a thumbprint for each digitally signed JavaScript file.

      1. In the Signing Certificate Thumbprints section, double-click an empty cell.

      2. Enter the digital thumbprint of the trusted certificate used to sign the JavaScript file.

         Note: For more information on how to obtain digital thumbprints, see "Digital Thumbprints" below.

         Important: If you enable Require Signature and do not specify thumbprints, JavaScript files will not be accepted by the system.

8. On the toolbar, click Save.

Digital thumbprints

When running JavaScript data feeds, you can set the system to only allow digitally signed JavaScript files from trusted sources for security considerations.

For a certificate to be trusted, all certificates in the chain, including the Root CA Certificate and Intermediate CA certificates, must be trusted on both the Web Server and Services Server machines.

Archer Technologies LLC certificate in the Trusted Root CA Store

By default, the Archer Technologies Security LLC certificate is not present on every machine’s root.

1. On the JavaScript file, right-click and select Properties.

   1. Click the Digital Signatures tab.

   2. From the Signature List window, select Archer Technologies Security LLC.

   3. Click the Details button.

   4. Click View Certificate.

   5. Click Install Certificate.

   6. Select Local Machine.

   7. Click Next.

   8. Select Place all certificates in the following store, and click Browse.

      1. Select Trusted Root Certification Authorities, and click OK.

      2. Click Next.

      3. Click Finish.

2. Upon successful import, click OK.

Obtaining a certificate thumbprint

1. On the Web Server and Services Server machines, open the Manage User Certificates program.

   1. From the Windows Start menu, launch certmgr. (Manage User Certificates).

   2. Navigate to Certificates – Local Computer > Trusted Root Certification Authorities > Certificates.

   3. Ensure the following certificates are in the Certificates sub-folder of the Trust Root Certification Authorities folder:

      • Archer Technologies Security LLC.

      • Archer Technologies Security 2048 V3 (Standard certificate).

2. Verify that the certificate is trusted.

   1. Double-click the Archer Technologies Security LLC certificate.

   2. In the Certificate window, click the Certification Path tab.

   3. Ensure that the Certificate Status window displays the following message: “This certificate is OK.”

      Note: If the Certificate Status window displays a different message, follow the onscreen instructions.

3. Obtain the trusted certificate thumbprint.

   1. In the Certificate window, click the Details tab.

   2. Scroll to and select the Thumbprint field.

      The certificate's digital thumbprint appears in the window.

   3. Copy the thumbprint.

      Note: For information on adding digital thumbprints, see Step 7a of "Configuring the JavaScript Transporter Settings" above.

Set up the NVD data feed

Task 1: Import a data feed

1. Go to the Manage Data Feeds page.

   1. From the menu bar, click .

   2. Under Integration, click Data Feeds.

2. In the Manage Data Feeds section, click Import.

3. Locate and select the .dfx5 file.

4. Click Open.

5. In the General Information section, in the Status field, select Active.

6. In the Additional Properties section, enable Optimize Calculations.

7. Click the Transport tab.

8. In the Transport Configuration section, complete the following:

   1. Click Upload.

   2. From the Upload JavaScript File dialog, click Add New.

   3. Locate and select the .js file and click Open.

   4. From the Upload JavaScript File dialog, click OK.

9. The JavaScript code allows clients to pass in different variables through the Custom Parameters section. The following table describes the supported values for specific Custom Parameters.

Key	Default Value	Possible Values (if applicable)	Description	Type (Index, Date, or Both)
nvdUrl	https://services.nvd.nist.gov/rest/json/cves/2.0		CVE API used to easily retrieve information on a single CVE or a collection of CVE from the NVD.	Both
apiKey	Optional Default = [empty]		The presence of the API key affects the rate of API requests. For a valid API Key, the limit is 100 requests per minute. The API key can be requested from the following NVD link: https://nvd.nist.gov/developers/request-an-api-key  For API requests without API Key, the limit is 1 request per minute. The NVD API at first allows 10 requests per minute and eventually restricts API requests to 1 request per minute.	Both
type	DATE	DATE, INDEX	This parameter dictates what CVE records are obtained via a specified request URL to NVDs API. This parameter can be set to either DATE or INDEX. If type = DATE: Data is retrieved by utilizing the following filter parameters: lastModifiedStartDate lastModifiedEndDate resultsPerPage These parameters return only the CVEs that were last modified during the specified period. Both lastModifiedStartDate and lastModifiedEndDate are required. If lastModifiedStartDate is not defined, then the LastRunTime value is used (either as a parameter override, a data feed token, or the default value in the JS code). LastRunTime always incorporates the lastRunTimeOffset parameter when determining a date. (Required) If lastModifiedEndDate is not defined, then default to Current Date. If lastModifiedEndDate is set in future to current date, then default to Current Date If type = INDEX: Utilized only for Base Loads. The code leverages a startIndex parameter that specifies the index of the first CVE to be returned in the response data. Index is zero-based, meaning the first CVE is at index zero. With the combination of resultsPerPage and startIndex, we extract remaining content until totalResults is reached. If type is Undefined Defaults = DATE Note: The best, most efficient, practice for keeping up to date with the NVD is to use the date range parameters to request only the CVEs that have been modified since your last request.
resultsPerPage	1500		This parameter specifies the maximum number of CVE records requested to be returned in a single API response. Value range of 100 - 2000. If set outside those boundaries, the value defaults to 500. A negative value is not accepted.	Both
lastModifiedStartDate	<LastRunTime>		Parameter used to filter CVE results based on the date a vulnerability record was last modified. lastModifiedStartDate and lastModifiedEndDate are parameters used together to return only the CVEs that were last modified during the specified period. If lastModifiedStartDate is not defined, then we utilize the LastRunTime (either as a parameter override, a data feed token, or the default value in the JS code). LastRunTime always incorporates the lastRunTimeOffset parameter when determining a date. (Required) If lastModifiedStartDate is set in future from current date, then we utilize the LastRunTime (either as a parameter override, a data feed token, or the default value in the JS code). LastRunTime always incorporates the lastRunTimeOffset parameter when determining a date. (Required) Input formats must be in the following: ISO-8601 date/time format Date/Time Example: 2024-10-28T01:00:11 We assume UTC and add the 'Z' UTC format Example: 2025-02-27T17:04:18Z UTC offset format Example: 2012-12-28T18:12:33+01:00 Example: 2021-08-04T13:00:00-03:00	DATE
lastModifiedEndDate	Null		Parameter used to filter CVE results based on the date a vulnerability record was last modified. lastModifiedStartDate and lastModifiedEndDate are parameters used together to return only the CVEs that were last modified during the specified period. If lastModifiedEndDate is not defined, then default to Current Date. If lastModifiedEndDate is set in future to current date, then default to Current Date Input formats must be in the following: ISO-8601 date/time format Date/Time Example: 2024-10-28T01:00:11 We assume UTC and add the 'Z' UTC format Example: 2025-02-27T17:04:18Z UTC offset format Example: 2012-12-28T18:12:33+01:00 Example: 2021-08-04T13:00:00-03:00	DATE
requestsPerMin	2		Puts a limit on how many API requests are made per minute to NVD’s API. Note: NVD has invoked a public rate limit (without an API key) of 5 requests in a rolling 30 second window; the rate limit with an API key is 50 requests in a rolling 30 second window. Requesting an API key significantly raises the number of requests that can be made in a given time frame. However, it is still recommended that your application sleeps for several seconds between requests so that legitimate requests are not denied, and all requests are responded to in sequence.	BOTH
lastRunTime	Null		A parameter that is used to define the lastModifiedStartDate which is passed to the NVD API. LastRunTime can be defined by the following: A value of the lastModifiedStartDate data feed parameter override Example: lastModifiedStartDate= 2025-01-01T10:04:01Z Example: lastModifiedStartDate= <LastRunTime> A specific date as data feed parameter override Example: LastRunTime = 2025-02-27T17:04:18Z Data feed token Data Feed Manager → Run Configuration tab under Tokens section. Default value in the JS code: 1970-01-10T00:00:00Z LastRunTime always incorporates the lastRunTimeOffset parameter when determining a date. (Required)	DATE
lastRunTimeOffset	-2		Utilized against the LastRunTime. Adds the negative number of days off LastRunTime. Typically leveraged to ensure there is adequate overlap accounting for time offsets when extracting data.	DATE
noRejected	true	true, false	By default, the NVD API includes CVE records with REJECT or REJECTED status. This parameter excludes out CVE records with REJECT or REJECTED status from being collected via NVDs API response. A value of true indicates do not return of CVEs with a Rejected status.	BOTH
proxy	Null		Provides the address of the proxy server. This is required for data feeds in SaaS.	BOTH
verifycerts	false	true, false	A default verify check for user authorization - an extra layer of debugging and testing when set true.	BOTH
maxRetry	5	Various Increase value to allow more retry requests sent to a API that has errored or faulted. Decrease value to limit amount of retry requests sent to a API that has errored or faulted.	When an exception occurs, this value indicates the number of times the script should retry the request made to NVDs API before allowing the feed to fault. If this key is not defined, any exception that is encountered will cause the feed to fault.	BOTH
retryDelay	5000 milliseconds (5 seconds)	Various (milliseconds time-based) Example values: 10000 (10 seconds) 60000 (1 Minute)	Time period before retrying API request to NVDs API when an error occurs.	BOTH
timeout	60000 (milliseconds)		Time period between a request sent and data response from NVDs API.	BOTH

Important: The keys and values are case-sensitive and cannot include extra spaces at the end of the strings. The listed values are in place by default but can be configured to suit your environment.

Populate initial data

To complete a base load of the NVD data feed, set the following parameters:

• type= INDEX

• resultsPerPage = 1000 (client discretion, less than 2000)

• requestsPerMin = 10 (client discretion, less than 60)

Maintain data

After completing the initial data load, complete the following:

1. Change the type parameter to 'DATE'.

2. Set lastModifiedStartDate to <LastRunTime>

3. Set lastRunTimeOffset to -1 (client discretion)

4. Set resultsPerPage to 1000 (client discretion, less than 2000)

5. Set requestsPerMin to 20 (client discretion, less than 60)

6. For each key type, determine whether you want it to be Protected or Plain Text. Selecting Protected encrypts the key value for the specified key in the log.

7. Click the Source Definition tab. Click the Tokens sub-tab. Verify token values.

8. The following table describes token values to verify.

   Token	Value
   LastRunTime	(Populated by feed)

   Note: For more information about tokens, see "Data Feed Tokens" in the Archer Online Documentation.

9. Verify that key field values are not missing from the data feed setup window.

10. Click Save

The following are the mappings of the source and target fields in the data feed.

Source Field	Target Field
ID	ID Title
CVSS_V2_Access_Complexity	NVD CVSS V2 Access Complexity
CVSS_V2_Access_Vector	NVD CVSS V2 Access Vector
CVSS_V2_Authentication	NVD CVSS V2 Authentication
CVSS_V2_Availability_Impact	NVD CVSS V2 Availability Impact
CVSS_V2_Base_Score	NVD CVSS V2 Base Score
CVSS_V2_Confidentiality_Impact	NVD CVSS V2 Confidentiality Impact
CVSS_V2_Exploitability_Score	NVD CVSS V2 Exploitability Score
CVSS_V2_Impact_Score	NVD CVSS V2 Impact Score
CVSS_V2_Integrity_Impact	NVD CVSS V2 Integrity Impact
CVSS_V2_Severity	NVD CVSS V2 Severity
CVSS_V3_Attack_Complexity	NVD CVSS V3 Attack Complexity
CVSS_V3_Attack_Vector	NVD CVSS V3 Attack Vector
CVSS_V3_Availability_Impact	NVD CVSS V3 Availability Impact
CVSS_V3_Base_Score	NVD CVSS V3 Base Score
CVSS_V3_Base_Severity	NVD CVSS V3 Base Severity
CVSS_V3_Confidentiality_Impact	NVD CVSS V3 Confidentiality Impact
CVSS_V3_Exploitability_Score	NVD CVSS V3 Exploitability Score
CVSS_V3_Impact_Score	NVD CVSS V3 Impact Score
CVSS_V3_Integrity_Impact	NVD CVSS V3 Integrity Impact
CVSS_V3_Privileges_Required	NVD CVSS V3 Privileges Required
CVSS_V3_Scope	NVD CVSS V3 Scope
CVSS_V3_User_Interaction	NVD CVSS V3 User Interaction
DFMKey	DFMKey
NVD_Link_Helper	NVD Link Helper
Source	Source
Summary	Description
Vuln_Last_Mod_DateTime	NVD Last Modified Date
Vuln_Pub_DateTime	NVD Vulnerability Published Date
DFM_Key(VULN_REFERENCE_LIST)	DFMKey (Vulnerability Reference Lists)
Types->ListValues->ListValue	Type (Vulnerability Reference Lists)
URL	URL (Vulnerability Reference Lists)

Task 2: Schedule a data feed

Important: A data feed must be active and valid to successfully run.

As you schedule your data feed, the Data Feed Manager validates the information. If any information is invalid, an error message is displayed. You can save the data feed and correct the errors later; but the data feed does not process until you make corrections.

1. Go to the Schedule tab of the data feed that you want to modify.

   1. From the menu bar, click .

   2. Under Integration, click Data Feeds.

   3. Select the data feed.

   4. Click the Schedule tab.

2. Go to the Recurrences section and complete frequency, start, and stop times, and time zone.

3. Field	Description
   Frequency	Specifies the interval in which the data feed runs, for example, Minutely, Hourly, Daily, Weekly, Monthly, or Reference. Minutely. Runs the data feed by the interval set. For example, if you specify 45 in the Every list, the data feed executes every 45 minutes. Hourly. Runs the data feed by the interval set, for example, every hour (1), every other hour (2) and so forth. Daily. Runs the data feed by the interval set, for example, every day (1), every other day (2) and, so forth. Weekly. Runs the data feed based on a specified day of the week, for example, every Monday of the first week (1), every other Monday (2), and so forth. Monthly. Runs the data feed based on a specified week of the month, for example, 1st, 2nd, 3rd, 4th, or Last. Recurrence. Runs a specified data feed as runs before the current one. This option indicates to the Data Feed Service that this data feed starts as soon as the referenced data feed is completed successfully. For example, you can select to have a Threats data feed run immediately after your Assets data feed finishes. From the Reference Feed list, select after which existing data feed the current data feed starts. A reference data feed will not run when immediately running a data feed. The Run Data Feed Now option only runs the current data feed.
   Every	Specifies the interval of the frequency in which the data feed runs.
   Start Time	Specifies the time the data feed starts running.
   Start Date	Specifies the date on which the data feed schedule begins.
   Time Zone	Specifies the time zone in of the server that runs the data feed.

3. (Optional) To override the data feed schedule and immediately run your data feed, in the Run Data Feed Now section, click Start.

4. Click Save.

Certification Environment

Date Tested: July 2025

Product Name	Version Information	Operating System
Archer	2025.04	Virtual Appliance
