RSA Identity Governance & Lifecycle User Provisioning

Archer provides IT security risk and compliance features. Archer allows building an efficient, collaborative enterprise governance, risk and compliance (GRC) program across IT, finance, operations and legal domains. With Archer, one can manage risks, demonstrate compliance, automate business processes, and gain visibility into corporate risk and security controls.

Integrating Archer with RSA Identity Governance & Lifecycle helps you improve access decisions, reduce the risk of inappropriate access, and better analyze security incidents by providing access to identity context and application entitlement data.

Archer Connector helps you govern and provision user access to Archer. You can use the business governance processes within RSA Identity Governance & Lifecyle to request, provision, and de-provision user access to workspaces within Archer.

Archer Exchange: With the Archer Exchange, the Archer team has created a broad selection of supplemental, value-added offerings to help you get your unique risk management program on the right path, right from the start. You can leverage the Archer Exchange offerings to expand the use of Archer solutions into new business processes and address specific industry, geographic, regulatory, or technical requirements.

On this page

Release notes

Release Date	Release Version	Notes
November 2024	2024.09	Recertification for Archer Platform Releases 2024.09
December 2019	6.7	Initial Release

RSA Identity Governance & Lifecycle User Provisioning | Archer Exchange

RSA does not provide an installation package on the Archer Exchange. To learn more about the RSA Identity Governance & Lifecycle User Provisioning integration, please contact RSA.

Overview

RSA Identity Governance & Lifecyle’s Collector for Archer provides a rich data context about users (such as their access, identity attributes, violations, accounts, etc.) and applications (entitlements, access) from Archer.

This documentation provides an overview of the Connector and Collectors for Archer end point. The guide describes the required configurations, parameters, and mappings of different attributes between the Connector and Collectors and how to use the AppWizard to integrate Archer with RSA Identity Governance &Lifecycle.

Key features and benefits

The RSA Identity Governance & Lifecycle User Provision integration enables organizations to:

Increase control of and visibility into who has access to what risk data, why access has been provided, and how acquired access was acquired
Ensure user access to Archer aligns with corporate control policies
Reduce the risk of inappropriate access, compliance failures, and breaches

Prerequisites (ODA and system requirements)

Components	Prerequisites
Archer Solution Area(s)	Archer Platform
Archer Use Case(s)	N/A
Archer Applications	N/A
Uses Custom Objects	No
Requires Archer On-Demand Application (ODA) License	This offering requires Zero (0) Archer On-Demand Applications.
Archer requirements	Archer Platform Release 2024.09 and later
Supported Archer Environments	The following Archer environments are supported: On-Premises Archer SaaS
Partner/Vendor Requirements	Valid RSA license is required. Additional fees may apply.

Installing required certificates

Archer certificate should be added to the appropriate trust-stores. Follow the steps mentioned below for adding certificates to the trust-stores of WebSphere, WebLogic and WildFly application servers.

WebSphere Application Server

In left panel, expand Security menu.
Click on SSL certificate and then click the key management link.
Under Configuration Settings, click the Manage endpoint security configurations link.
Select Outbound properties for the appropriate node.
Click on appropriate node link to get the properties.
Under Related Items, click Key stores and certificates and then click the ‘NodeDefaultTrustStore’ key store.
Under Additional Properties, click Signer certificates and then click Retrieve From Port.
In the Host field, enter <archer host_name>, enter 443 in the Port field, and archer_certin the Alias field
Click Retrieve Signer Information.
Verify that the certificate information is for a certificate that you can trust.
Click Apply and then click Save.
Now, create Archer V3 collectors using below mentioned steps for creating the collectors. Even after following all 12 steps mentioned above, if collectors don’t work as expected and show SSL certificate issue, the authority certificate must be added in the keystore.

Now, again go to Key stores and certificates and click the Aveksa Keystore.
Under Additional Properties, click Signer certificates and then click Retrieve From Port.
In the Host field, enter authority url, 443 in the Port field, and authority_cert in the Alias field.
Click Retrieve Signer Information.
Verify that the certificate information is for the certificate that you can trust.
Click Apply and then click Save.
Login into WebSphere machine using SSH (e.g. putty).
On command prompt, run : /home/oracle/AFX/afx stop
On command prompt, run : /opt/IBM/WebSphere/AppServer/bin/stopServer.sh server1
On command prompt, run : /opt/IBM/WebSphere/AppServer/bin/startServer.sh server1
On command prompt, run : /home/oracle/AFX/afx start.

WebLogic Application Server

Download/retrieve the Archer SSL certificate in PEM format e.g. archer.pem and save them at location /home/oracle.
Log in to WebLogic Administrative console:http://<HOST_NAME>.aveksa.local:7001/console/login/LoginForm.jsp
Under Domain Configurations, in the Environment section, click Servers link.
Click aveksa Server link.
Click the SSL tab.
Click Advanced link.
Select HostName as Verification = None.
Save the settings.
Login into WebLogic machine using SSH (e.g. putty)
cd /home/oracle/
Add archer.pem certificate in server.keystore by using keytool :

Run :keytool -import -file archer.pem -alias archer -keystore server.keystore

Run :keytool -import -file <authority_certificate> -alias <alias> -keystore server.keystore

It will ask for keystore password. Default keystore password is Av3k5a15num83r0n3
Restart SSL on WebLogic Server as described below:
1. Go to Servers > Controls tab.
2. Select/check aveksaServer(admin) and then click Restart SSL

Restart the server.
1. /home/oracle/AFX/afx stop
2. Run:/home/oracle/wls/12.1.3.0/user_projects/domains/aveksaDomain/bin/stopWe

  Logic.sh
3. Run:/home/oracle/wls/12.1.3.0/user_projects/domains/aveksaDomain/bin/star

  tWebLogic.sh
4. /home/oracle/AFX/afx start

Using Archer Application Wizard to Configure Connector and Collectors

RSA Identity Governance and Lifecycle provides an Application Wizard which simplifies the process of setting up Archer Connector and Collectors.Use the Application Wizard to initially set up Archer Connectors and Collectors. If you need to modify these Connectors/Collectors later, then please refer to next section(s).

Configure Connector and Collectors Using Archer Application Wizard

Log in to RSA Identity Governance and Lifecycle.
Go to Resources > Applications and click Create Application.
From the list of applications, select Archer.
Click Next.
The Setup page is there to provide an overview of the Archer endpoint, as well as collector and connector information. Now click Next.

Fill out the Connect page with information regarding connecting to the Archer endpoint.

Parameter Name	Description
Application Name	Any name to identify this application
Scheme	HTTP or HTTPS
Host	Host name of the Archer endpoint server
Port	Port number of the Archer endpoint server
Admin Name	Archer Administrator account name which will be getting used for the provisioning of different entities and collections
Admin Password	Archer Administrator password
Website Name	Configured on Archer web server
Instance Name	Archer Instance name
Domain Name	Archer Domain name
Paging to fetch data	Paging size required to fetch data from Archer, by default it is 1000 ( being used for all the Collectors)
AFX Server	Select Available AFX server from the drop down list

Click Test Connection to check the connectivity to the endpoint from Identity Governance and Lifecycle instance.
Click Next.
On the Confirm Changes page, confirm all the provided details. If there are any corrections required, click Back to return to previous page.
Click Next.
The Change Summary page lists all the components created by this Application Wizard:
- A new Archer Application that will have Connector and Collectors binding.
- Custom attribute User Id created for Account
- Custom attribute Group Id created for Group
- Custom attribute Role Id created for Application Role
- Account Collector (ADC) to collect Accounts and Groups.
- Entitlement Collector (EDC) to collect entitlements of Account.
- AFX Connector
  - Request Form
  - Account Template
Click Finish to close the Wizard.

Creating New Archer Collectors - ADC & EDC (Optional)

The Application Wizard provides guidance for creating the Archer Collectors. Use this section only if you need to create a new Archer Collector, which can be configured later with some Application. The recommended approach is to use the Application Wizard to get the Application- Collectors-Connector binding and Account template configurations created.

Prerequisites

Archer Account Data Collectors and Entitlement Data Collectors use REST APIs provided by the Archer end point. Ensure that the Archer endpoint has REST API support enabled and is accessible from the Identity Governance and Lifecycle installed server location.

Following attributes will be collected from Archer:

Type	Attribute
Account	Email AccountNameStatus GivenNameFamilyNameUserID Department businessUnitLastLoginDate Company Phone Lockedstatus disabledStatus
Group	GroupName GroupID
Role	role_ID Role_name Description Alias updateDate isDefault

Type

Attribute

Account

Email AccountNameStatus

GivenNameFamilyNameUserID

Department

businessUnitLastLoginDate

Company Phone Lockedstatus

disabledStatus

Group

GroupName

GroupID

Role

role_ID

Role_name

Description

Alias updateDate

isDefault

Adding Additional Attributes (Custom Attributes)

• Login to RSA Identity Governance and Lifecycle

• G o to Admin > Attributes

Account

Go to "Account" tab and add following attributes if they do not exist:

Attribute Name	Data Type	Database ID	Data Source	In Detail	In Popup	Mandatory
Email	String	<one of available>	Collected	Yes	Yes	No
AccountName	String	<one of available>	Collected	Yes	Yes	No
Status	String	<one of available>	Collected	Yes	Yes	No
GivenName	String	<one of available>	Collected	Yes	Yes	No
FamilyName	String	<one of available>	Collected	Yes	Yes	No
UserID	String	<one of available>	Collected	Yes	Yes	Yes
Department	String	<one of available>	Collected	Yes	Yes	No
BusinessUnit	String	<one of available>	Collected	Yes	Yes	No
LastLoginDat e	String	<one of available>	Collected	Yes	Yes	No
Company	String	<one of available>	Collected	Yes	Yes	No
Phone	String	<one of available>	Collected	Yes	Yes	No
Lockedstatus	String	<one of available>	Collected	Yes	Yes	No
DisabledStatus	String	<one of available>	Collected	Yes	Yes	No

Group

Go to "Group" tab and add following attributes if they do not exist:

Attribute Name	Data Type	Database ID	Data Source	In Detail	In Popup	Mandatory
GroupName	String	<one of available>	Collected	Yes	Yes	No
GroupID	String	<one of available>	Collected	Yes	Yes	Yes

Role

Go to "Application Role" tab and add following attributes if they do not exist:

Attribute Name	Data Type	Database ID	Data Source	In Detail	In Popup	Mandatory
Role ID	String	<one of available>	Collected	Yes	Yes	Yes
Role Name	String	<one of available>	Collected	Yes	Yes	No
Description	String	<one of available>	Collected	Yes	Yes	No
Alias	String	<one of available>	Collected	Yes	Yes	No
UpdateDate	String	<one of available>	Collected	Yes	Yes	No

Collector configuration

To set up a new instance of the Archer Collectors (ADC/EDC):

1. Login to RSA Identity Governance and Lifecycle.

2. Select the application already created to create ADC or EDC (Resources > Applications).

3. Click the Collectors tab.

4. Click Create Account Collector or Create Entitlement Collector depending on the requirement.

5. Configure the collectors based on your requirements:

Creating new Account Data Collector (ADC)

Configure the Collector Description screen with these values:

Field Name	Value
Collector Name	Archer Account Data Collector
Description	Archer’s Account Data Collector
Data Source Type	Archer
Agent	AveksaAgent
Business Source	Application for Archer
Status	Active
Copy from	Select Existing Archer Account Collector if you want to use same collector configuration
Scheduled	Default : No

Click Next. .

Configure the Configuration Information screen referencing these values:

Field Name	Value
Scheme	http or https
Host	< Host or IP on which Archer Instance is running >
Port	<Archer Server port>
Admin Name	< Name of the Admin user to login>
Admin Password	< Password of the admin of the domain registered with Archer>
Application Name	<Application name/Website name>
Instance Name	<Instance Name of the Archer>
Domain Name	<Domain Name of the Archer>
Paging to fetch data	<Size of Paging data to be fetched at a time>Default : 1000

Click Next.

Configure the Map Collector Attributes to Account Attributes screen with these values:

Field Name	Value
Last Login Date	<Custom attribute to collect Last Login Date>
Expiration Date	A Non-Mandatory field. Not applicable to the Archer Collector because there is no attribute similar to “Expiration Date” for accounts provided in the REST API response from Archer.
User Id	user Id

Click Next.

Configure the Map Collector Attributes to Account Mapping Attributes screen with these values:

Field Name	Value
User Reference	accountname

Click Next.

Configure the Map Collector Attributes to Group Attributes screen with these values:

Field Name	Value
Group id	group Id
Owner	N/A

Click Next.

Configure the Edit User Resolution Rules screen with these values:

Field Name	Value
Target Collector	<Cloud IDC> Default: Users
User Attribute	<Email Address> Default: UserID

Click Next.

Configure the Edit Member Account Resolution Rules screen with these values:

Field Name	Value
Target Collector	Archer Account Data Collector
Account Attribute	User ID

Click Next.

Configure the Edit Sub-group Resolution Rules screen with these values.

Field Name	Value
Target Collector	Archer Account Data Collector
Group Attribute	Group ID

Click Finish to save this Collector.

Creating new Entitlement Data Collector

Configure the Collector Description screen with these values:

Field Name	Value
Collector Name	Archer Entitlement Data Collector
Description	Archer’s Entitlement Data Collector
Business Source	Application for Archer
Data Source Type	Archer
Agent	AveksaAgent
Status	Active
Copy from	Select Existing Archer Entitlement Collector if you want to use same collector configuration.
Scheduled	Default : No

Click Next.

Configure the Configuration Information screen with these values:

Field Name	Value
Scheme	http or https
Host	< Fully qualified IP/hostname>
Port	<Archer Server port>
Admin Name	<Admin Username>
Admin Password	<Admin Password>
Application Name	< Application/Website name (Found in the Archer control panel -> Instance -> Web tab ->BaseUrl field)>
Instance Name	<Archer instance name>
Domain Name	<Archer Domian Name>
Paging to fetch data	<Size of paging data to be fetched at a time (default : 1000)>

Click Next.

Configure the “Map Collector Attributes to App Role Attributes” screen with these values:

Field Name	Value
Role ID	role_id of the App Role collected

Click Next.

Configure Group Evaluation screen with these values:

Field Name	Value
Associated Collector	Archer Account Data Collector
Group value evaluates to	Group ID

Click Next.

Configure Account Evaluation screen with these values:

Field Name	Value
Associated account Collector	Archer Account Data Collector
Account value evaluates to	User ID

Click Finist to save the Collector.

Creating a New Archer Connector (Optional)

The Application Wizard provides guidance for creating the Archer Connector. Use this section only if you need to create a new Archer Connector, which can be configured later with some Application. The recommended approach is to use the Application Wizard to get the Application- Connector binding and Account template configurations created.

Note: The created Connector will be in ‘Test’ mode by default and cannot be used with any application unless it is set to the Active mode.

Prerequisites

Archer Connector makes use of REST APIs provided by the Archer endpoint. Make sure that the Archer endpoint has REST API support enabled and is accessible from the RSA Identity Governance and Lifecycle installed server location.

Connector configuration

Set up a new instance of the Archer Connector.

The Connector creation is made up of three sections:

General – General details about the Connector, such as the name, type, etc.
Settings – The connection settings required to connect RSA Identity Governance and Lifecycle with the endpoint application in consideration.
Capabilities – These are the list of “verbs” or capabilities that Connector supports; for example: Create, Update, Delete, etc.

To set up a new instance of the Archer connector without using the Application Wizard:

Log in to RSA Identity Governance and Lifecycle.
From the top menu bar, go to AFX > Connectors.
Click Create Connector.
Use the reference tables below to configure the connector.

General

The following describes the Parameters the “General” page.

Parameter	Value
Name	<Provide Connector instance Name>
Description	<Provide some description for this Connector instance>
Server	<Select available AFX Server>
Connector Template	RestFul Webservice
State	Test (It can be changed later to “Active”, once capabilities are tested)
Export As Template	Name of Connector template

Note: When you are satisfied your connector is configured properly, change the state to Active. No automated provisioning will occur while in the Test state. It is recommended that you test all enabled commands using Test Connector Capabilities prior to changing to the Active state.

Settings

The following table describes the parameters on the “Settings” page.

Field Name	Description
Scheme	HTTP or HTTPS (Scheme to use to access the RESTful web service) In case of using HTTPS, make sure that all the required certificates (Archer server certs as well as all the certs required in chain) are added to the jre’s keystore. ( See the Troubleshooting and Tips section for information about keystore settings.)
Host	<Fully qualified Archer Server Hostname/IP>
Port	<Port number to access Archer server rest services>
Admin Username	<Username for authentication>
Admin Password	<Password for authentication>
Application Name	<Application/Website name> Can be found in the Archer control panel > Instance > Web tab>→ BaseUrl field
Instance Name	<Archer Instance Name>
Domain Name	<Archer Domain Name>
Follow redirects (GET requests only)	<If checked and the RESTful web service call is a GET, redirects will be followed>
Response timeout (in milliseconds)	<The number of milliseconds to wait for a response> (default is 10000)
Asynchronous callback?	If checked, after a successful response from the web service, AFX will wait for a callback
Proxy Host	<Hostname of the proxy server>
Proxy Port	<Port of the proxy server>Default : 0
Proxy User Name	<User name for the proxy server>
Proxy Password	<Password for the proxy server>

Capabilities

The following capabilities are supported for the Archer Connector:

Category	Command
Login	Login
Account	Create an Account Delete an Account Reset an Account Password Add Account to Group Remove Account from Group Enable an Account Disable an Account Update an Account Add Application Role to Account Remove Application Role from Account
Group	Create a Group Delete a Group Update a Group Add Application Role to a Group Remove Application Role from a Group Add a Group to a Group Remove a Group from a Group
Role	Create a Role Delete a Role Update a Role

Command Input Parameters Login

Field Name	Value
Path	${Settings.Application}/api/core/security/login
Encode Path	Check if path encodingrequired Default-unchecked(false)
Method	POST
Request Headers	Content-Type:application/json
Request body	{"UserDomain":"","Password":"${Settings.Password}","Username":"${Settings .Username}","InstanceName":"${Settings.Instance}"}
Status Code	Expression Type:JsonPath Expression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match: unchecked for both OR Expression Type: statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match: unchecked for both
Brief Response	Expression Type: JsonPath Expression: ValidationMessages[0]/MessageKey OR Expression Type :statusCode
Detailed Response	Expression Type: JsonPath Expression: ValidationMessages[0]/MessageKey OR Expression Type: statusCode

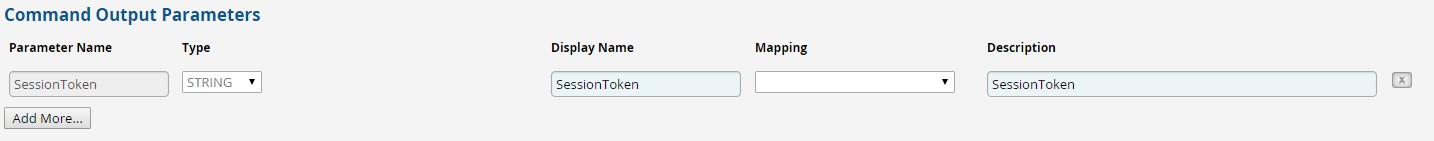

SessionToken	Expression Type:JsonPath Expression: RequestedObject/SessionToken

Note: No input parameters should be configured, use parameters from Settings page as ${Settings.paramName} if required in request body.

Create an Account

Field Name	Value
Parameter Name	FirstName
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	First Name
Mapping	${User.First_Name}
Description:	Account First Name

Field Name	Value
Parameter Name	LastName
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Last Name
Mapping	${User.Last_Name}
Description:	Account Last Name

Field Name	Value
Parameter Name	Password
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	Yes
Display Name	Password
Mapping	${AccountTemplate.Password}
Description:	Account Password

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Field Name	Value
Parameter Name	UserName
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	Yes
Display Name	UserName
Mapping	${User.UserId}
Description:	Username

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/user
Encode Path	Check if path encoding required Default- unchecked(false)
Method	POST
Request Headers	Content-Type:application/jsonAccept:application/json; charset=utf-8 Authorization:Archersession-id=”${SessionToken}”
Request body	{ "User": { "FirstName": "${FirstName}", "LastName": "${LastName}", "UserName": "${UserName}" }, "Password": "${Password}" } Note: Can add more parameters to create account, with valid json request.
Status Code	Expression Type:JsonPathExpression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example:statusCode/jsonPath

Delete an Account

Field Name	Value
Parameter Name	Account Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Account Id
Mapping	${Account.UserId}
Description:	Account Id to be deleted

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/user/${AccountId}
Encode Path	Check if path encoding required Default- unchecked(false)
Method	DELETE
Request Headers	Content-Type:application/json Accept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	N/A
Status Code	Expression Type:JsonPathExpression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example:statusCode/jsonPath

Reset an Account Password

Field Name	Value
Parameter Name	Account Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Account Id
Mapping	${Account.UserId}
Description:	Id of account who’s password is to be reset

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Field Name	Value
Parameter Name	Password
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	Yes
Display Name	New Password
Mapping	“”
Description:	New Password value

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/userpassword
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/jsonAccept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"UserId":${AccountId},"NewPassword":"${Password}"}
Status Code	Expression Type:JsonPathExpression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Add Account to Group

Field Name	Value
Parameter Name	Account Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Account Id
Mapping	${Account.UserId}
Description:	Account Id to be added to group

Field Name	Value
Parameter Name	Group Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Group Id
Mapping	${Group.Group_Id}
Description:	Group Id where account is to be added

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/usergroup
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/jsonAccept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"UserId":${AccountId},"GroupId":${GroupId},"IsAdd":true}
Status Code	Expression Type:JsonPathExpression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Remove Account from Group

Field Name	Value
Parameter Name	Account Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Account Id
Mapping	${Account.UserId}
Description:	Account Id to be removed from group

Field Name	Value
Parameter Name	Group Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Group Id
Mapping	${Group.Group_Id}
Description:	Group Id where account is to be removed

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/usergroup
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/jsonAccept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"UserId":${AccountId},"GroupId":${GroupId},"IsAdd":false}
Status Code	Expression Type:JsonPathExpression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement
	1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Enable an Account

Field Name	Value
Parameter Name	Account Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Account Id
Mapping	${Account.UserId}
Description:	Account Id to be enabled

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/user/status/active/${AccountId}
Encode Path	Check if path encoding required Default- unchecked(false)
Method	POST
Request Headers	Content-Type:application/jsonAccept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	N/A
Status Code	Expression Type:JsonPath Expression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Disable an Account

Field Name	Value
Parameter Name	Account Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Account Id
Mapping	${Account.UserId}
Description:	Account Id to be disabled

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/user/status/inactive/${AccountId}
Encode Path	Check if path encoding required Default- unchecked(false)
Method	POST
Request Headers	Content-Type:application/json Accept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	N/A
Status Code	Expression Type:JsonPathExpression:IsSuccessful Pattern/Replacement 1. true/0 2. false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match: unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Update an Account

Field Name	Value
Parameter Name	FirstName
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	First Name
Mapping	${User.First_Name}
Description:	Account First Name
Type	String

Field Name	Value
Parameter Name	LastName
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Last Name
Mapping	${User.Last_Name}
Description:	Account Last Name

Field Name	Value
Parameter Name	Password
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	Yes
Display Name	Password
Mapping	“”
Description:	Account Password

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Field Name	Value
Parameter Name	Account Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Account Id
Mapping	${Account.UserId}
Description:	Id of account to be updated

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/user
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/json Accept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"User":{"Id":${AccountId},"FirstName":"${FirstName}","LastName":"${LastNa me}","UserName":"${UserName}","AccountStatus":1}} Note: Can add more parameters to update account, with valid json request
Status Code	Expression Type:JsonPathExpression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Add Application Role to Account

Field Name	Value
Parameter Name	Account Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Account Id
Mapping	${Account.UserId}
Description:	Account Id

Field Name	Value
Parameter Name	Role Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Role Id
Mapping	${ApplicationRole.Role_Id}
Description:	Role Id

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/usergroup
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/jsonAccept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"UserId":${AccountId},"RoleId":${RoleId},"IsAdd":true}
Status Code	Expression Type:JsonPath Expression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match: unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Remove Application Role from Account

Field Name	Value
Parameter Name	Account Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Account Id
Mapping	${Account.UserId}
Description:	Account Id

Field Name	Value
Parameter Name	Role Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Role Id
Mapping	${ApplicationRole.Role_Id}
Description:	Role Id

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/usergroup
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/jsonAccept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"UserId":${AccountId},"RoleId":${RoleId},"IsAdd":false}
Status Code	Expression Type:JsonPath Expression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Create a Group

Field Name	Value
Parameter Name	Group
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Group Name
Mapping	“”
Description:	Group name to be created

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/group
Encode Path	Check if path encoding required Default- unchecked(false)
Method	POST
Request Headers	Content-Type:application/jsonAccept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"Group":{"Name":"${Group}"}} Note: Can add more parameters to create group, with valid json request.
Status Code	Expression Type:JsonPath Expression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Delete a Group

Field Name	Value
Parameter Name	Group Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Group Id
Mapping	${Group.Group_Id}
Description:	Group name to be deleted

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/group/${GroupId}
Encode Path	Check if path encoding required Default- unchecked(false)
Method	DELETE
Request Headers	Content-Type:application/jsonAccept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	N/A
Status Code	Expression Type:JsonPath Expression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type:statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type:statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessageOR Expression Type:statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Update a Group

Field Name	Value
Parameter Name	Group Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Group Id
Mapping	${Group.Group_Id}
Description:	Group name to be updated

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Field Name	Value
Parameter Name	Group
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Group Name
Mapping	“”
Description:	New group name to be updated

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/group
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/json Accept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"Group":{"Name":"${Group}","Id":${GroupId}}} Note: Can add more parameters to update group, with valid json request.
Status Code	Expression Type: JsonPath Expression: IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type: statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match:unchecked for both
Brief Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode
Detailed Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Add Application Role to a Group

Field Name	Value
Parameter Name	Group Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Group Id
Mapping	${Group.Group_Id}
Description:	Group Id

Field Name	Value
Parameter Name	Role Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Role Id
Mapping	${ApplicationRole.Role_Id}
Description:	Role Id

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/rolegroup
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/json Accept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"GroupId":${GroupId},"RoleId":${RoleId},"IsAdd":true}
Status Code	Expression Type: JsonPath Expression: IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type: statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match: unchecked for both
Brief Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode
Detailed Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Remove Application Role from a Group

Field Name	Value
Parameter Name	Group Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Group Id
Mapping	${Group.Group_Id}
Description:	Group Id

Field Name	Value
Parameter Name	Role Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Role Id
Mapping	${ApplicationRole.Role_Id}
Description:	Role Id

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/rolegroup
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/jsonAccept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"GroupId":${GroupId},"RoleId":${RoleId},"IsAdd":false}
Status Code	Expression Type:JsonPath Expression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type: statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match: unchecked for both
Brief Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode
Detailed Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Add a Group to a Group

Field Name	Value
Parameter Name	Group Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Group Id
Mapping	${Group.Group_Id}
Description:	Parent group Id

Field Name	Value
Parameter Name	Subgroup Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Subgroup Id
Mapping	${Group.Group_Id}
Description:	Subgroup Id to be added

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/groupmember
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/json Accept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"GroupId":${GroupId},"GroupMemberId":${SubgroupId},"IsAdd":true}
Status Code	Expression Type:JsonPath Expression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type: statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match: unchecked for both
Brief Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode
Detailed Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Remove a Group from a Group

Field Name	Value
Parameter Name	Group Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Group Id
Mapping	${Group.Group_Id}
Description:	Parent group Id

Field Name	Value
Parameter Name	Subgroup Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Subgroup Id
Mapping	${Group.Group_Id}
Description:	Subgroup Id to be removed

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/groupmember
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/json Accept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"GroupId":${GroupId},"GroupMemberId":${SubgroupId},"IsAdd":false}
Status Code	Expression Type: JsonPath Expression: IsSuccessful Pattern/Replacement true/0 false/1 Partial Match: unchecked for both OR Expression Type: statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match: unchecked for both
Brief Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode
Detailed Response	Expression Type:JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Create a Role

Field Name	Value
Parameter Name	Role
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Role Name
Mapping	“”
Description:	Role name to be created

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/role
Encode Path	Check if path encoding required Default- unchecked(false)
Method	POST
Request Headers	Content-Type:application/json Accept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"AccessRole":{"Name":"${Role}"}} Note: Can add more input parameters to create role, with valid json request
Status Code	Expression Type: JsonPath Expression: IsSuccessful Pattern/Replacement true/0 false/1 Partial Match: unchecked for both OR Expression Type: statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match: unchecked for both
Brief Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode
Detailed Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type i.e. statusCode/jsonPath

Delete a Role

Field Name	Value
Parameter Name	Role Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Role Id
Mapping	${ApplicationRole.Role_Id}
Description:	Role Id to be deleted

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/role/${RoleId}
Encode Path	Check if path encoding required Default- unchecked(false)
Method	DELETE
Request Headers	Content-Type:application/json Accept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	N/A
Status Code	Expression Type:JsonPath Expression:IsSuccessful Pattern/Replacement true/0 false/1 Partial Match:unchecked for both OR Expression Type: statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match: unchecked for both
Brief Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode
Detailed Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type i.e. statusCode/jsonPath

Update a Role

Field Name	Value
Parameter Name	Role Id
Type	Number
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Role Id
Mapping	${ApplicationRole.Role_Id}
Description:	Role Id to be updated

Field Name	Value
Parameter Name	SessionToken
Type	String
Default Value	N/A
Is the parameter required?	No
Is the parameter encrypted?	No
Display Name	SessionToken
Mapping	“”
Description:	SessionToken

Field Name	Value
Parameter Name	Role
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Role Name
Mapping	${ApplicationRole.Name}
Description:	Role name to be updated

Field Name	Value
Parameter Name	Alias
Type	String
Default Value	N/A
Is the parameter required?	Yes
Is the parameter encrypted?	No
Display Name	Role Alias
Mapping	“”
Description:	New alias name of role to be updated

Command Code

Field Name	Value
Generate SessionToken	Checked(true) Note: Have the login command configured
Path	${Settings.Application}/api/core/system/role
Encode Path	Check if path encoding required Default- unchecked(false)
Method	PUT
Request Headers	Content-Type:application/json Accept:application/json; charset=utf-8 Authorization:Archer session-id=”${SessionToken}”
Request body	{"AccessRole":{"Name":"${Role}","Id":${RoleId},"Alias":"${Alias}"}} Note: Can add more input parameters to update role, with valid json request
Status Code	Expression Type:JsonPath Expression: IsSuccessfulPattern/Replacement true/0 false/1 Partial Match: unchecked for both OR Expression Type: statusCode Expression: Pattern/Replacement 1. ^[23]\d{2}$/0 2. ^([45])\d{2}$/$1 Partial Match: unchecked for both
Brief Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode
Detailed Response	Expression Type: JsonPath Expression: ValidationMessages[0]/ResourcedMessage OR Expression Type: statusCode

Note: Have StatusCode, BriefResponse, DetailedResponse configured to same Expression Type; for example: statusCode/jsonPath

Known limitations of Archer connector

Enabling/Disabling an already enabled/disabled account pass. e.g. If an account is enabled and you again try to enable it, the capability passes successfully; same is applicable for disabled account.

Adding app Role To Account/Group already added passes. e.g. If an account/group is given access to some role, and you again perform the operation on same account/group for same role it passes successfully.

Removing app Role From Account/Group which does not have that account/group passes. e.g. An account/group not having access to some role, and you perform the operation to remove role it passes successfully.

Tips & troubleshooting

Archer is an application which runs on Windows IIS server. Inside an Archer instance, you can create multiple applications with different names.

When providing the URL for the Connector and Collector, use the application name hosted on the IIS server. In the REST commands, always use the Instance name which is configured in the Archer application.
Below are the possible Archer REST API error responses with error code. This table can be used to troubleshoot issues related to the endpoint while using the Connector and Collectors. In the case of Connectors, these errors can be observed in Server log files –AFX/mule/logs/mule.AFX-CONN-<ConnectorName>.log.

Expected Condition	HTTP Response Code	Meaning	Example
The business process succeeded or failed in an expected way	200	Success	Request for non-existent user
A system process failed (at a deeper level than the business process)	400	bad request	A deserialization exception is thrown
Invalid session	401	Unauthorized	Invalid or incorrect session token in request header
User requests resource to which they do not have permission	403	Forbidden	The user requests a user but does not have read access to the module
User attempts to POST content using the PUT uri or vice versa	403	Forbidden	The user attempts to save changes to an existing group record using the POST uri on the group controller
No route matching the requested URI is round	404	Not Found	The user requested a URI that has no corresponding route to map it to a controller
OData query too large (default 1024)	413	HTTP Request Too Large	OData query string exceeds configured limit

More about OData usages by Archer REST API:

(Refer http://www.odata.org/ for more information)

REST API Responses, i.e. Results, can be limited and organized in several different ways by the caller. The user can control the number of results found (filtering), the number of columns in each row returned (projection), and several other aspects of result sets. OData queries are normally passed on the request URI in a query string. Due to the security issues, this will not be a supported use of OData for Archer API. OData queries must be passed in the request body.

$top, $skip, $filter, $orderby, $select are fully supported for retrieving Users, Groups and Roles. These filters are being used by the RSA Identity Governance and Lifecycle collector for Archer.

POST: http://localhost/archer/api/core/system/usercontact/191

Request Headers: Accept:application/json,text/html,application/xhtml+xml,application/xml;q=.9,*/*;q=0.8 Authorization: Archer session-id="session token ID from login"

Content-Type: application/json

X-Http-Method-Override: GET

Request Body: {“Value”:”?$filter=ContactTypeeq ‘7’&select=Value”}

Archer provides a REST API interface to communicate to its internal entities forcollection and modification. To implement Connectors and Collectors for this endpoint, RSA Identity Governance and Lifecycle must have the REST API support enabled. In addition to this, Archershould be accessible from the location where RSA Identity Governance and Lifecycle server (ACM and AFX) is running.

To verify whether Archer is accessible and REST API support is enabled, make use of any REST Client and try the command below (replace credentials and other artifacts shown in the example with real values).

Request: POST http://Archer/api/core/security/login

Request Header:

Accept: application/json,text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8

Content-Type: application/json

Request Body:

{"InstanceName":"Archer","Username":"ArcherAdmin","UserDomain":"","Password":"Archer123!"}

Check the response - it should be something similar to the response below.

Expected response:

IsSuccessful=True Links RequestedObject

ContextType=0 InstanceName=Archer

SessionToken=B6542A941EA367EBB2DE214E1621A42B

Translate=False UserConfig

……

Login capability creates an Archer session using the specified credentials on the specified instance. The API request will return a serialized representation of a SessionContext object, known as a SessionToken in this Connector.

Refer to the section below to find out more about how the SessionToken is used for the Connectors and their configurations.
Additional information regarding Connector’s Login capability and Session Token:

Note: This section provides additional information about the Login capability. No configuration changes need to be made by the end user. All of the described configurations are set by default when the Connector is created.

To communicate to the Archer instance, you need a Session Token, which is returned by its POST request http://Archer/api/core/security/login. This Session Token has approximately 30 seconds validity. You must regenerate the Session Token before every Capability execution.

To get this Session Token before any capability execution, RSA Identity Governance and Lifecycle Connector for Archer executes its Login capability implicitly when “Generate Session Token” check box is checked for each capability. (By default, this is checked when the Connector is created.)

A screenshot of a computer

Description automatically generated

This Login capability is responsible for generating a new SessionToken and passing it to all the capabilities (Applicable only to this Archer Connector template). By default, there is an output parameter configured and named as “SessionToken”. This is a Read-Only parameter and you should not change these settings . Note that, the “Mapping” field of this output parameter should be blank.

This SessionToken Output parameter is configured to parse the response from the Login Postrequest and get the token from the JSON path “RequestedObject/SessionToken.”

A screenshot of a computer

Description automatically generated

java.net.UnknownHostException can occur for the following reasons: host name is wrong, Archer endpoint is not accessible from the RSA Identity Governance and Lifecycle host, no network connectivity is available, etc.

To verify the host name, you can use the command: “ping <host name/IP>”
How to configure the output parameter in the Create Account command
1. Login to RSA Identity Governance and Lifecycle.
2. From the top menu bar, click AFX > Connectors
3. Click on the Archer Connector for which you want to configure the output parameter.
4. Click Edit.
5. Click the Capabilities tab and then click Create an Account.
6. Under Command Output Parameters, click Add More.
7. Provide ‘Account Id’ as ‘Parameter Name’ and select ‘Account.User_Id’ as ‘Mapping’.
8. In ‘Account Id’ response at the end of the page, select ‘JsonPath’ as ‘Expression Type’ and add ‘RequestedObject/Id’ as ‘Expression’
9. Click OK to save the configurations

Archer supports SSL configuration and allows communication over HTTPS protocol. To use secure communication, make sure that the default trust-store has Archer Server certificates added. If the chaining of certificate is required to reach the Archer endpoint from the RSA Identity Governance and Lifecycle instance, ensure that default trust-store has all the required network certificates as well.

If the valid certificates are not in the proper keystore, SSLHandshakeException can be observed:

javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target

Certification environment

Date tested: November 2024

Product Name	Version Information	Operating System
Archer	2024.09	Windows
RSA IGL	Latest	SAAS
